Containerized Integration

I'm afraid I can't let you do that, Dev

There is a certain kind of dread that comes with the acknowledgment that You can't always cross the gap between Your local pythonic incantations and the desired environment, where those enchantments are to be set to be roaming free, setting and getting those os.environs. "Being part of the Machine" is not only a figurative thing that a societal contrarian might say, but - in terms of software development - it is also a very literal thing. You design cogs of various sizes and shapes, that are to be put in the overarching conglomerate of multi-lingual, multi-paradigm and multi-purpose mechanisms.

What is actually contrary to popular belief, the net is not about connecting people and/or machines at the upper echelons of the enterprise-ish hierarchy. It's more often than not a convoluted web of rules and blockades, that separate this connectivity from one environment to another - be it different teams of developers, different services (often at their different stages) or in general the intra/internet gatekeeping conundrum.

This is, of course, done with good intent, so that the developers don't accidentally set the production database to be the target of their unit tests, pushing around valuable data about somebody's World of Warcraft character on the private server run by a group of "real chill dudes", where You've recently managed to down that one annoying boss with Your guild, and got the highest roll on Crystalheart Pulse-Staff, to the dismay of Your fellow restoration druids.

Those are the real casualties that would have been made without that one reasonable sysadmin at Your software house, who's set up e.g. that VPN so all GitLab CI workers can't reach the K8s cluster, where the actual services may be running. Additionally, he will also (rightfully) hunt You down if You try to copy any credentials to those temporary nodes, to "cleverly" bypass those security measures.

I would like to stress here that I am not talking about any continuous deployment (CD) pipelines, where the code is automatically deployed to the production environment and it mutates its state, in real time. CD naturally assumes successful CI (continuous integration) and by integration, it means that the code is already up to the security and coding standards of Your organization. In other words, it is safe. The CI part is what I am really focusing on in this article, so - I am not GitOps hater or something like that.

The thing is, some tasks require a bit more than just simple code linting tests and they must touch upon another important aspect of integration with the existing environment - communication, more often than not, in the form of authorized API requests or, in general, calls made through specified protocols.

So we arrive at the "Schrödinger's code problem" i.e. the code that must talk with our services, but really can't talk with our services at the same time. But what is to be tested here? Language i.e. form. In other words, we only care if our code can communicate at all with the service, not really if it retrieves a specific portion of the data. The rest can be mocked. So basically, if You can't play with the real tools - You can at least play with the toys, and that is what mock test environments are for. An approximation.

In this article, I will try to show You how I spin up those sandboxes for my integration tests, using GitLab CI Services and Docker, with additional tips for unit testing Python code via containerized pytest nested runners.

IMPORTANT NOTE: This article assumes that there is a GitLab CI runner available in Your organization, that is capable of Docker-in-Docker (DinD) builds. I've included some links to tutorials on how to set up such a runner, but I will not go into details on how to do that, as it is not the main focus of this article. That is why I am including the 99% of code snippets here in this article and no repo to go with it, because cloning it and running will simply not do. Maybe in the future, I will make an article about setting such workers on Your home/private cluster, but that's a topic for another time (SOON™).

Alive in a box - dead to the outside world

To figure out how to create our pseudo-environment, we must first understand what goes on under the hood when our job is being executed on the GitLab CI runner. In very short terms, the runner pulls the Docker image specified in the .gitlab-ci.yml for a given job and spins up a container, which has access to the project's files and the GitLab CI variables. The container then executes the commands specified in the script section of the job. The container is then destroyed, along with all the changes made to the filesystem, unless we explicitly tell the runner to persist some files between the jobs as either artifacts or cache.

Take a look at the following example:

# .gitlab-ci.yml (excerpt) – simple job showing host vs nested container
stages: [test]

integration-sandbox:
  stage: test
  image: docker:25.0.0-cli
  services:
    - name: docker:dind
      command: ["--mtu=1460"]
  variables:
    DOCKER_HOST: tcp://docker:2375
    DOCKER_TLS_CERTDIR: "" # disable TLS for demo
  script:
    - echo "[host] docker version:" && docker version --format '{{ .Server.Version }}'
    - |
      echo "[host] starting nested container..."
      docker run --rm alpine:3.19 sh -c 'echo "[nested] hello from inside nested container"'

A quick side note - if You see me using the \ operator in the code snippets, it is just a way to break the line in the .gitlab-ci.yml file (or other manifests/shell scripts), so that it is more readable. I like to separate the flags and arguments of the commands into separate lines, with indentations added to, for example, flag values to see which keyword belongs to which flag. It is not necessary, but I find it more readable than a single line with a bunch of flags and arguments, separated by spaces.

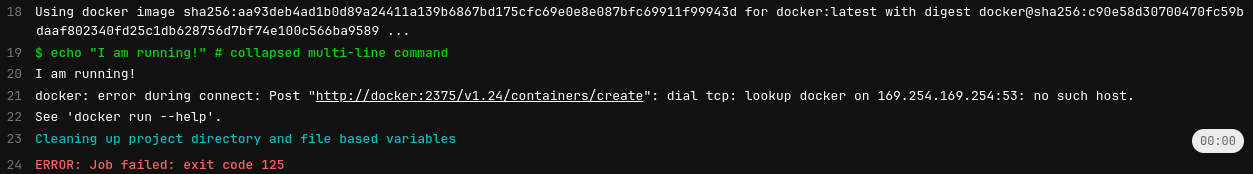

So, coming back to CI, we expect to be greeted by two messages, one from the host and one from the nested container. However, when we run this job, we will only see the first message executed at the main container level, but the second one will not be executed at all:

The main reason is the way in which the parent container attempts to communicate with the Docker daemon that is located on the host. The original Docker daemon is listening on a Unix socket, which is located at /var/run/docker.sock on the host machine.

The parent container, however, does not have access to this socket, because it is not mounted to the container's filesystem. This is what line number 21 in the log printout above is really about. The nested container tries to look for a way to communicate with its parent's daemon, so it checks if the Docker socket is mounted into its filesystem.

If not (which is the case here), it then tries to communicate with an external Docker service, specified under the DOCKER_HOST environment variable. By default, this variable (for GitLab runners) is set to tcp://docker:2375, which translates to URL of: http://docker:2375. And this is the reason why the nested container prints out the error message about the failed TCP lookup.

We can confirm this behavior by listing the sockets mounted to the nested container under /var/run path and setting the DOCKER_HOST envvar to some bogus value like tcp://docker-service:2375:

# Inspect mounts and simulate failed daemon access inside a nested container
docker run --rm alpine:3.19 sh -c '
  echo "Mounts under /var/run:"; ls -l /var/run || true; \
  echo "DOCKER_HOST=$DOCKER_HOST"; \
  echo "Trying docker ps (expected failure if socket/service absent):"; \
  docker ps 2>&1 || true
'

Here we basically expect the overall effect to be the same as previously, but this time we will see that there is basically nothing mounted under /var/run path and the TCP lookup will be performed for the docker-service host, which will fail, as expected.

And this is what we get, the /var/run directory is empty (red box in Pic. 2) and the TCP lookup fails (yellow underline in Pic. 2). So now we have to decide what is really open to us as a solution to open up the communication between the nested container and the host's Docker daemon. The first thing that comes to mind is to simply delegate the creation of any new Docker containers to an autonomous Docker service, that will be set up by the runner and reachable from the nested container. This can be achieved by using the services keyword in the .gitlab-ci.yml file. Those services are basically Docker containers spawned beside the CI container itself, which are accessible from the tests container due to the network being shared between all of the sub-hosts present on the runner.

BUT there is a catch. Using Docker-in-Docker (DinD) approach requires an additional configuration of the runner itself, that can be then used by the CI jobs as a shared runner by specifying the tags keyword in the .gitlab-ci.yml file. In most cases, kind of runners are already present as a CI/CD tool for software development teams, because, for example, building Docker images is a very common task among them, so we can already capitalize on that. However, if there is no such runner available, we can always create one ourselves. There is a plethora of tutorials on how to do that, so I will assume that this kind of resource is already present in our organization.

Whale nesting

So the game plan now is like so:

1. We will tell GitLab CI to use the runner with the predefined tags set up on it by the administrator.
2. We create a Docker service that will be used by the nested container to communicate with the host's Docker daemon. We will name it my-docker-service and we will use the docker:dind image for that purpose.
3. We will set the DOCKER_HOST environment variable to tcp://my-docker-service:2375 in the CI container.
4. We will run the command in the nested container and hope for the best.

One caveat is that if we want to use the 2375 port, we need to disable TLS verification, which can be done by setting the DOCKER_TLS_CERTDIR variable to an empty string. We can also opt into per‑build network isolation (FF_NETWORK_PER_BUILD=true) so that the DinD service and our job container share a dedicated network namespace.

Putting those tweaks together, a more feature‑rich job might look like this:

docker-env-playground:
  stage: test
  image: docker:25.0.0-cli
  services:
    - docker:dind
  variables:
    DOCKER_HOST: tcp://docker:2375
    DOCKER_TLS_CERTDIR: ""
    FF_NETWORK_PER_BUILD: "true"
  script:
    - docker info --format 'Storage: {{ .Driver }} | Cgroup: {{ .CgroupDriver }}'
    - docker run --rm alpine:3.19 sh -c 'echo nested $(uname -m)'

Redis ping‑pong example

To demonstrate container→service communication we can launch a Redis service and from a nested container send a PING:

redis-ping:
  stage: test
  image: docker:25.0.0-cli
  services:
    - name: redis:7-alpine
      alias: some-random-cache
    - docker:dind
  variables:
    DOCKER_HOST: tcp://docker:2375
    DOCKER_TLS_CERTDIR: ""
  script:
    - docker run --rm --network=host redis:7-alpine redis-cli -h some-random-cache PING

Expected output includes PONG, proving DNS name resolution for the service.

Snake-in-a-box (integration test scenario)

Let's extend the idea: run pytest against a temporary Redis. File layout for a minimal example:

repo/
├── connector.py
├── tests/
│   └── test_connector.py
├── requirements.txt
└── .env            # REDIS_HOST, REDIS_PORT, REDIS_DB

connector.py (very small wrapper):

import os, redis

class RedisConnector:
    def __init__(self):
        self._client = redis.StrictRedis(
            host=os.getenv('REDIS_HOST','localhost'),
            port=int(os.getenv('REDIS_PORT','6379')),
            db=int(os.getenv('REDIS_DB','0')),
            decode_responses=True,
        )

    def ping(self) -> bool:
        return self._client.ping()

tests/test_connector.py:

from connector import RedisConnector

def test_ping():
    assert RedisConnector().ping() is True

requirements.txt:

redis==5.0.1
pytest==7.4.4

Corresponding CI job:

integration-tests:
  stage: test
  image: python:3.10
  services:
    - name: redis:7-alpine
      alias: some-random-cache
  variables:
    REDIS_HOST: some-random-cache
    REDIS_PORT: "6379"
    REDIS_DB: "0"
  before_script:
    - pip install -r requirements.txt
  script:
    - pytest -q

This pattern keeps each service ephemeral: once the job finishes, the data disappears.

Compose Yourself

When orchestration logic (multiple services, healthchecks, environment fan‑out) gets verbose, introduce Docker Compose and run it inside the CI job. Example docker-compose.yml snippet tailored for the Redis + pytest case:

version: "3.9"
services:
  redis:
    image: redis:7-alpine
    container_name: redis
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 5s
      timeout: 5s
      retries: 5
  pytest-runner:
    image: python:3.10
    container_name: pytest-runner
    depends_on:
      redis:
        condition: service_healthy
    working_dir: /workspace
    volumes:
      - ./:/workspace:ro
    environment:
      REDIS_HOST: redis
      REDIS_PORT: "6379"
      REDIS_DB: "0"
    command: bash -lc "pip install -r requirements.txt && pytest -q"

CI job invoking compose:

compose-integration:
  stage: test
  image: docker:25.0.0-cli
  services:
    - docker:dind
  variables:
    DOCKER_HOST: tcp://docker:2375
    DOCKER_TLS_CERTDIR: ""
  script:
    - apk add --no-cache py3-pip
    - pip install docker-compose
    - docker-compose up --abort-on-container-exit --exit-code-from pytest-runner

Decomposing the composition

Looking at the compose file, some key points can be highlighted:

1. depends_on.condition: service_healthy ensures tests wait for Redis.
2. Healthcheck uses native redis-cli ping for a fast readiness probe.
3. Read-only project mount prevents accidental writes from tests (:ro).
4. Environment variables are centralized in the compose file instead of repeated --env flags.
5. Single exit status is bubbled up via --exit-code-from.

Hardening & scaling tips

• Add a second network and put only necessary services on the public one.
• Use secrets / config support (Compose v3+) instead of plain env for sensitive data.
• Enable test parallelism by parameterizing project name: docker-compose -p ci_$CI_JOB_ID.
• Cache Python deps: mount a writable volume for pip cache if build time dominates.
• For heavier stacks (e.g. Postgres + Redis + API), split into multiple compose profiles and activate subsets with --profile.

When NOT to use DinD

If build performance or layer caching matters, prefer the GitLab Kaniko or BuildKit executors instead of DinD, then run integration containers referencing built images by tag/digest.

That wraps the full journey: ad‑hoc single container, service resolution, nested container strategy, direct CI orchestration, and finally Compose‑driven ephemeral integration environments.

Takeaways: Keep environments minimal, lean on healthchecks, centralize config, and graduate to Compose only when repetition starts to appear.

Happy container spelunking!
